Eyemax 560/580TVL High Resolution Box Camera 12V DC , DNR, Sens up, low light web Interface

Secured Shopping
Best security features
Free Shipping
Free delivery over $500

Eyemax 560/580TVL High Resolution Box Camera 12V DC , DNR, Sens up, low light web Interface

Eyemax 560/580TVL High Resolution Box Camera 12V DC , DNR, Sens up, low light web Interface


  • Silver Casing
  • 1/3 inch Super HAD CCD
  • 811(H) x 508(V) 410K pixels (NTSC)
  • 560/580 TV Line (Color/BW) Resolution
  • 0.3 Lux at F1.2 (50 IRE, AGC HIGH, DNR HIGH)
  • 0.002 Lux (Sens-up X 128)
  • 12 volts DC
  • Camera Settings can control through web ( Internet Explorer )
  • Auto Tracing White Balance (ATW) / Back Light Compensation (BLC) / Auto Gain Control (AGC)
  • Electronic Shutter Control (ESC)
  • C or CS mount for lens (c-mount adapter included)

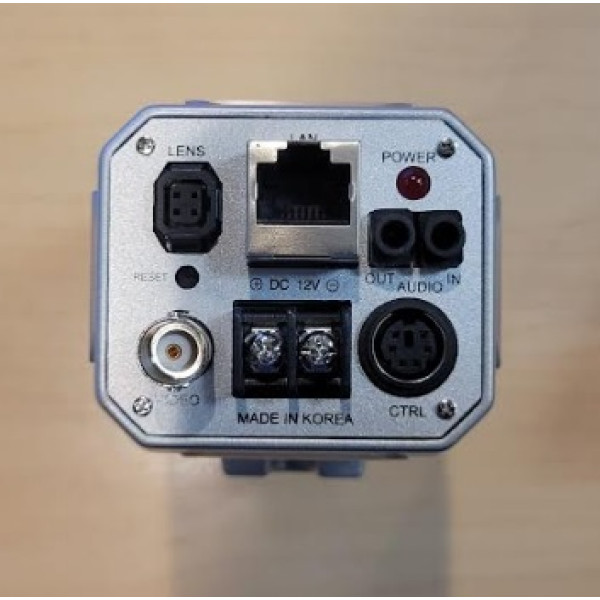

  • BNC Video Output , Web Video viewer S/W and Internet Explorer
  • High quality H.264 Algorithm
  • 30fps/25fps @ full D1 resolution
  • 1:N Multi-casting and relayed data transmission
  • De-Interlaced Video at 30fps
  • Dynamic IP support with Dynamic DNS
  • Real time monitoring/recording /playback through CMS
  • Lens and mount are sold separately
  • Webserver Built-in
BlueCCTV offers Vandalproof Infrared Dome Cameras that are manufactured by Exelon, KT&C, CNB, TelPix and Eyemax. Our vandalproof Dome Cameras are extremely resistant and can withstand physical forces to keep the cameras safe. Our products are the dependable standard in professional security surveillance, trusted by the experts. Easy to install for use both indoors and out. Please call us at 1-818-988-9542 or send us an e-mail at: sales@bluecctv.com for more info.
Write a review
Note: HTML is not translated!
Bad Good
Unlimited custom tabs or blocks in any position and any sort order. Assign buttons to any block or create separate standalone Button modules and set up your own grid layout inside the products page.
  • Availability: In Stock
  • Product Code:: IPB-58
  • MPN: IPB-58
$215.00
